QX150i™

Product Description

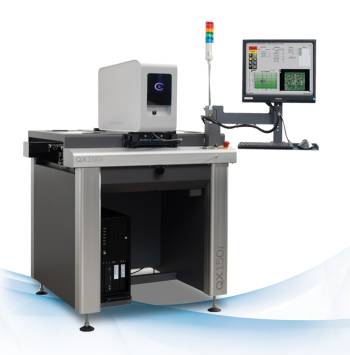

QX150



The QX150i™ AOI system offers high value and high flexibility for all applications and is ideally suited for pre-reflow and selective solder inspection. The Strobed Inspection Module (SIM), the core engine behind QX150i™, enables on-the-fly inspection assuring a fast and smooth process.

AI² (Autonomous Image Interpretation) technology on QX150i™ ensures ultrafast programming and is capable of getting you from zero to production ready in less than 13 minutes*. Powered by an 80 megapixel sensor, QX150i™ significantly improves solder joint and 01005 inspection performance and provides crisp images for more accurate defect review. The system is also designed to provide easy wedge-in replacement of existing conveyor.

Make an order

Downloads



QX150i™ Brochure





QX100i™ Brochure





Return On Investment of a Pre-Reflow AOI System

Details

Pre-FlowIdeal for Pre-Reflow and Selective Solder Applications
Capability01005 Inspection Capability
ReplacementEasy Wedge-in Replacement of Existing Conveyor
FastFastest Programming with AI² in <13 minutes
3 Year Warranty3-Year Standard Warranty* Advantage
*On standard parts only (excludes conveyor belts and other consumables); 1 year warranty on service

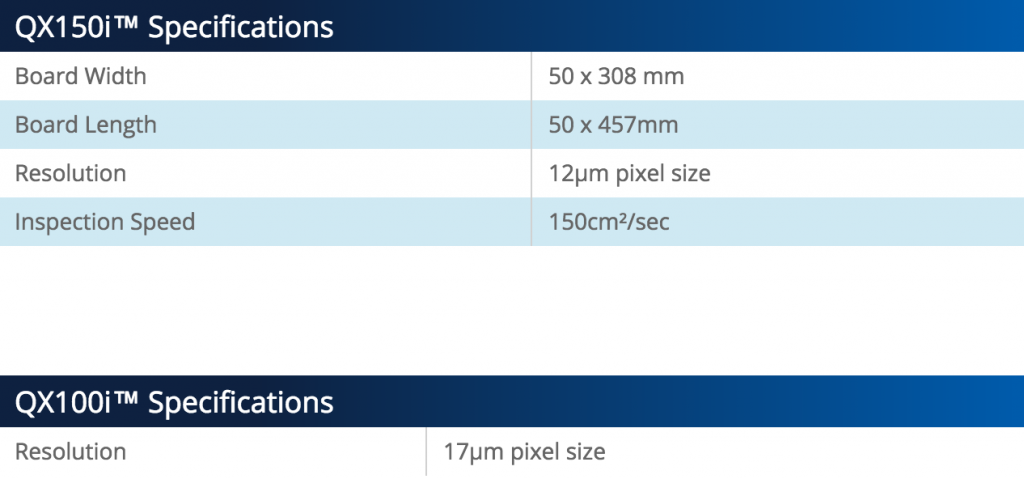

Captura de pantalla 2016-05-17 a la(s) 12.28.39
