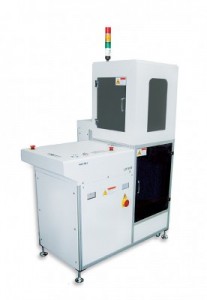

Product Description
This unit is for supplying automatically P.C from in-line magaine rack to next line by pusher
Details
■ CE model (CE-type)
■ Safety design
■ Remove a magazine shaking with side clamping type
■ Various feeding pitch. 1~4 steps (10,20,30,40 mm)
■ Able to use suitable of line situation
■ Contribute to stable quality and productivity elevation
■ Easy operating panel
■ Universal & SMEMA Interface
■ Safety design
■ Remove a magazine shaking with side clamping type
■ Various feeding pitch. 1~4 steps (10,20,30,40 mm)
■ Able to use suitable of line situation
■ Contribute to stable quality and productivity elevation
■ Easy operating panel
■ Universal & SMEMA Interface
OPTIONS
■ Buffer conveyor
■ Automatic pusher position adjustment
MODEL |
TYPE |
RACK NO |
P.C.B SIZE (W*L*H)m |
MAGAZINE SIZE (W*L*H)m |
DIMENSION (W*L*H)m |
AIR |
POWER SUPPLY |
WEIGHT |
FL-100CE |
S |
1 rack |
50×50,250×330 0.5t~2.0t |
320x355x570 |
700x1045x1830 |
5~7Kgf /㎠ |
C110/220V 50/60Hz (0.4KVA) |
250Kg |
L |
50×50,350×450 0.5t~2.0t |
400x460x570 |
820x1265x1830 |
300Kg |
