MACHINE FOR CONFORMAL COATING OF CIRCUIT BOARD EDGES BY IMMERSION

Product Description







maquina-barnizado-cantos-circuitos-inmersion

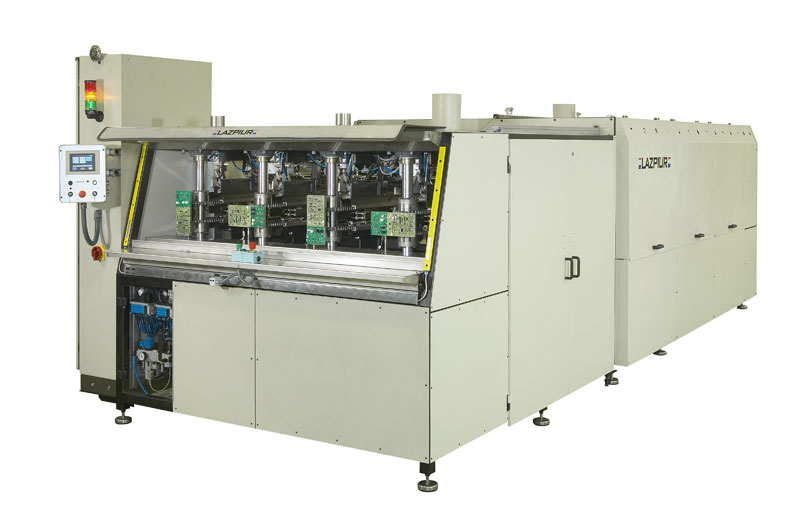

MACHINE FOR CONFORMAL COATING OF CIRCUIT BOARD EDGES BY IMMERSION

This machine is designed to carry out automatic conformal coating of circuit board edges by immersion. The machine operates semi-automatically.

  • Manual loading/unloading of circuit boards.
  • 4 circuit board conveyor chains.
  • Each chain conveyor has a 28 circuit board capacity.
  • Conformal coating and solvent feed circuit with level detector.
  • Conformal coating draining area.
  • Conformal coating tanks, activated by means of servomotors.
  • Curing area with temperature sensor.
  • Maximum circuit board dimensions 300 x 300.



Make an order



Details

PRODUCTION RATE

  • Production: Cycle time 15 s.

DIMENSIONS

  • Weight: 5000kg
  • Length: 6450
  • Width: 2400
  • Height: 1850
