MACHINE FOR CIRCUIT BOARD CONFORMAL COATING BY IMMERSION

Product Description

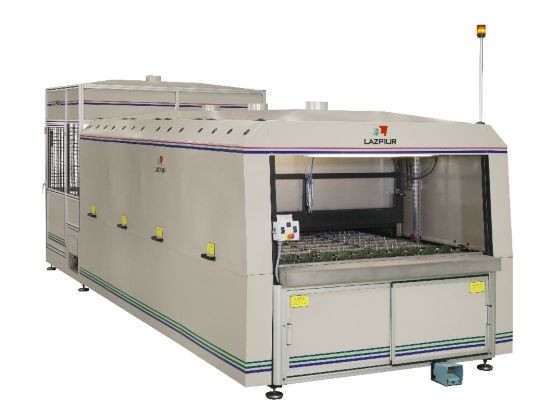

maquina-barnizado-circuitos-inmersion

MACHINE FOR CIRCUIT BOARD CONFORMAL COATING BY IMMERSION

This machine is designed to carry out the automatic conformal coating of circuit boards by immersion. The machine operates automatically.

  • Circuit board feeding by electronic belt.
  • Manual unloading of circuits.
  • 6 axes anthropomorphic robot.
  • Conformal coating and solvent feed circuit with level detector.
  • Conformal coating draining area.
  • Curing area with temperature sensor.
  • Maximum circuit board dimensions 200 x 200.
  • Motor-driven belt with a 240 circuit board capacity.



Make an order



Details

PRODUCTION RATE

  • Production: Cycle time 15 s.

DIMENSIONS

  • Weight: 4300 kg
  • Length: 6650
  • Width: 2450
  • Height: 1990
