LZ-PRESS-FIT

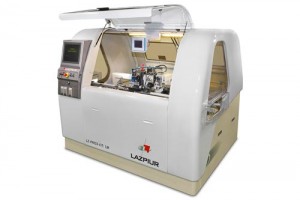

Machine designed for Press-fit and/or Through-hole component insertion.

Machine is running in automatic mode:

  • Polyvalent, quick head changing possibility.
  • In-line configuration (off-line configuration is also optional).
  • Automatic reel feeding system.
  • High speed insertion, up to less than 0.2 seconds per insertion.
  • Force measuring system.
  • Possible to insert 2 by 2.
  • Vision system for insertion point auto-correction, using fidutials or holes.
  • PCB thickness measuring system and insertion stroke auto-correction.
  • 1, 2 or 3 insertion heads possibility.
  • X-Y table driven by linear servomotors.



Make an order



Details

PRODUCTION RATE

  • Depends on the number of terminals to be inserted and the pitch between them (from 0,16 sec/terminal till 0,35 sec/terminal)

DIMENSIONS

  • Length: 2500mm (with 3 heads)
  • Width: 1800mm
  • Height: 1800mm
