EXCEN FLEX

Product Description



EXCEN_FLEX_F

Achieves the World’s Highest Productivity and Work Flexibility

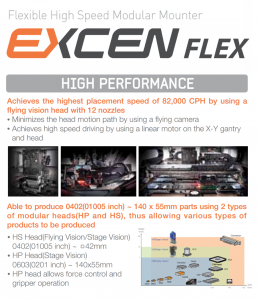

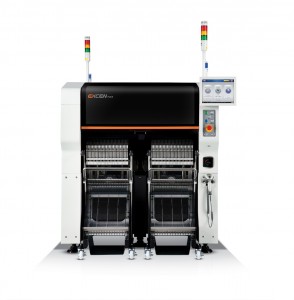

EXCEN FLEX, a dual gantry modular machine using a 12 nozzle flying camera, achieves the world’s highest placement speed of 82,000 CPH. In addition, it provides a One Machine Solution since it can be used for parts from 0402(01005 inch) to 140 x 55mm in size, as well as PCBs up to 900x580mm in size. EXCEN FLEX provides various production modes including mixed production of different types of PCBs, independent production at the front and rear, etc., by using a flexible conveyor system.

EXCEN FLEX maximizes actual productivity and work convenience by using a SMART feeder which is the world’s first Auto Splicing and Auto Loading Feeder.



Make an order

Media



Downloads

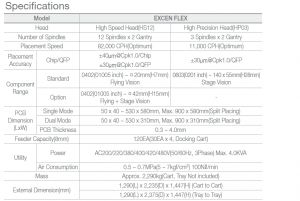

Datasheet

Details
