Product Description

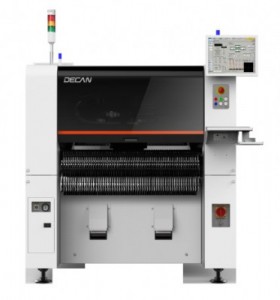

The DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class.

The modular conveyor allows Optimal PCB flow and it is possible to convert to large board handling in the customer facility. Stage vision and tray feeder options increase its flexibility.

Make an order








Optimizing PCB transportation paths for productivity improvement

Modular Conveyors

    ■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.

    ■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation.

Minimized head path for improved equipment speed

Twin Servo Control

    ■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head

    ■ Minimized head movement path through recognizing parts during transportation following parts installation

    ■ 10-spindle head with individually operating Z axes



Placement Accuracy: ±40㎛ (0402mm  01005inch)

    ■ Applied with a high-precision linear scale and rigid mechanism

    ■ Provides precision calibration algorithms and diverse automatic calibration functions



Provides optimal line solutions through versatility and productivity improvement


    ■ Optimal line configuration from chips to uniquely-shaped components according to options setup

Equipment capable of responding to large-scale PCBs, which can be remodeled on site

    ■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling

     – Responsive to a maximum 740 x 460mm PCB

Responsive to uniquely-shaped components (including tray components)

    ■ Responsive to a maximum 42mm IC when the stage vision option is applied


Strengthened equipment software operation convenience

    ■ Convenient production and editing of work programs with built-in equipment optimization software

    ■ Provision of a range of work data and information on a large-scale LCD screen

High-precision, convenient electric feeder

    ■ Calibration and maintenance-free electric feeder

    ■ Improved work convenience with a single reel bank mounted feeder

    ■ Improved productivity through the provision of  automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

    ■ Automatic loading and splicing capabilities implemented as an industry first

     – Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

    ■ Zero consumables costs for parts connection attained

■ High Performance

· 2 Gantry, Flying Vision Head

· 80,000 CPH (OPTIMUM, FS10 Head)

■ High Reliability

· Linear Motor Apply: High-Accuracy,

■ Low-noise

· Accuracy +-40um@ Cpk>1.0(@0402)

· Accuracy +-30um@ Cpk>1.0 (QFP/Stage Vision)

■ Flexible Production

· Modulas Conveyor System

· PCB 740mm x 460mm Handle
