C1 AUTOMATIC FINAL ASSEMBLY LINE

Product Description







montajefinalc1

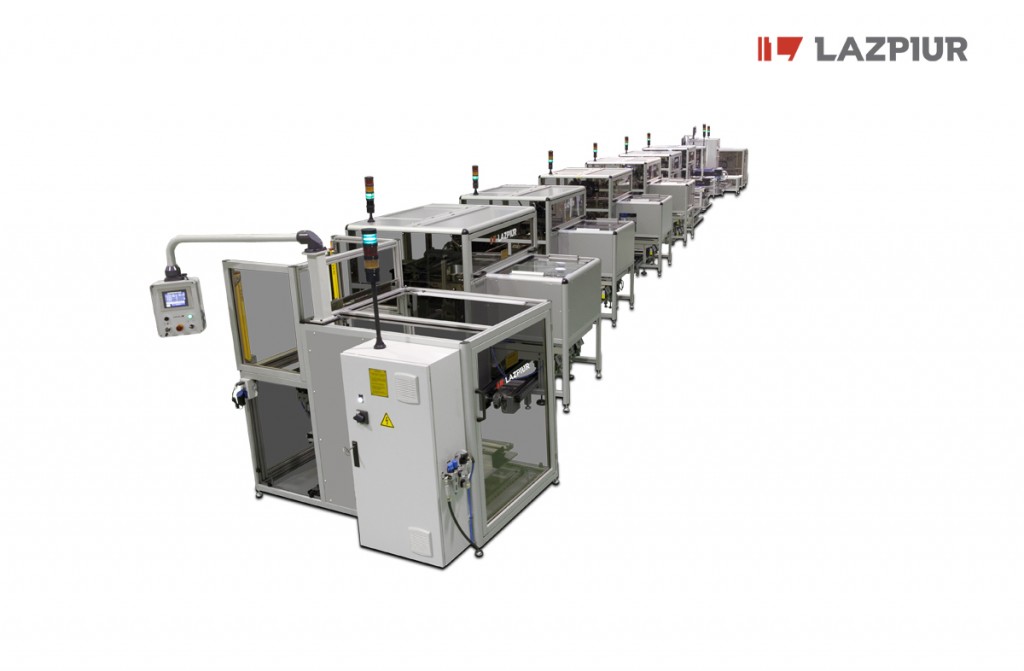

C1 AUTOMATIC FINAL ASSEMBLY LINE



Automatic line designed for component (fuse, relays) assembly in Junction Boxes and testing

Line is configured by:

  • Manual Junction Box into palet loading/unloading station.
  • Automatic fuse assembly machines (1, 2, 3 or 4 vibrators).
  • Automatic relay assembly machines (1,2 or 3 feeders).
  • Component press + electric testing machine.
  • Component testing machine by vision system.
  • Return conveyor.



Make an order



Details

PRODUCTION RATE

Insertion force measurement.

Fuse insertion in 0,8 sec/fuse.

Relay insertion in 1,8 sec/insertion.

DIMENSIONS

  • Length: 15m
  • Width: 2m
  • Height: 1,8m
