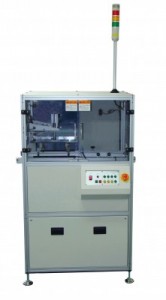

Bare Board Loader FVL-800E

Product Description



G2015Jun1510081481226400

This unit is for operating efficiently to adsorb Bare PCB by vacuum, to supply it to next line and to be possible composition Magazine Loader and Line.









Make an order

Details



■ Safety design

■ Optimal working time with lift-up, down type

■ Strength to inhale weight PCB a match

■ Easy vacuum pad changes regarding PCBs (6Φ, 8Φ, 10Φ)

■ Contribute to stable quality and productivity elevtion

■ Easy operating panel

■ Universal & SMEMA Interface

OPTIONS

■ Automatic conveyor width adjustment (20 seconds)

■ Touch Panel

MODEL

TYPE

CAPACITY

P.C.B SIZE

(W*L*H)m

DIMENSION

(W*L*H)m

AIR

POWER

SUPPLY

WEIGHT

FVL-800E

S

200PCS

t 1.6m

50*50,250*330

0.5t~2.0t

630*855*1350

5~7Kgf/㎠

AC110/220V

50/60Hz

(0.4KVA)

150Kg

FVL-800LE

L

50*50,350*450

0.5t~2.0t

700*975*1350

180Kg
