ASSEMBLY MACHINE FOR ACTIVE COMPONENTS ON PCB PLUS 13C

Product Description







maquina-montaje-componentes-activos-sobre-pcb-plus-13c

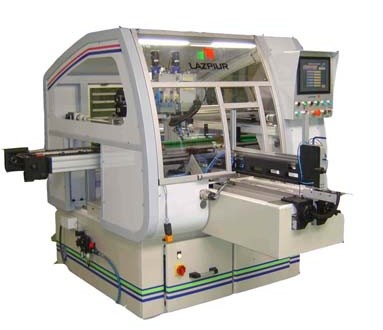

ASSEMBLY MACHINE FOR ACTIVE COMPONENTS ON PCB PLUS 13C

This machine is designed to automatically assemble and clamp active components on printed circuit boards. The machine operates automatically.

  • Feeding of circuits on base pallet.
  • Capacity of up to 4 feeders.
  • The feeders can be:
    • Relays in the form of a magazine and tubes.
    • Resistances, diodes or radial feeders.
    • Capacitors, Shunt, Polyswitch or radial feeders.
    • Etc.
  • Capability to work on a network.
  • Servo-actuated lower coordinate system for clamping legs.
  • Communication can be by SMEMA protocol.
  • Servo-actuated gripper for picking up components.
  • Venturi system for picking up components.
  • Upper Vision System on Lower for the correction of the program and inspection of components.





Details

  • Production: Time approx. 2 s/component.

DIMENSIONS

  • Weight: 1700kg
  • Length: 2300
  • Width: 2300
  • Height: 2000
