40 WAY CONNECTOR ASSEMBLY MACHINE (FOR THE AUTOMOTIVE SECTION)

Product Description







maquina-montar-conectores-40-vias

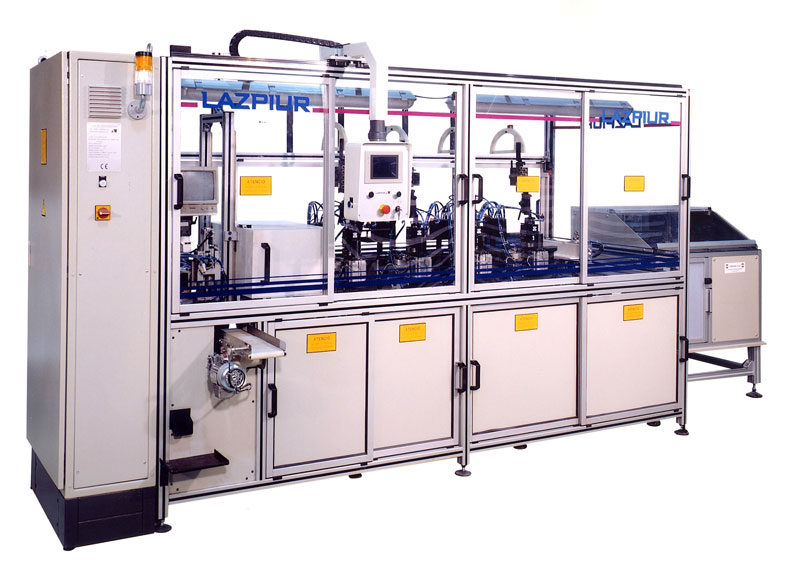

40 WAY CONNECTOR ASSEMBLY MACHINE (FOR THE AUTOMOTIVE SECTION)



The machine is designed to automatically insert 0.62X0.62 pins in the 40 way connectors.

  • Automatic connector feed via vibrator system.
  • Automatic pin feed from the roll.
  • Selecting and positioning connectors.
  • Artificial vision for controlling and verifying pin length and the presence of the same.
  • A station in charge of selecting the good and the bad parts.
  • Completely automatic operation.







Details

  • Cycle time: 5.4 sec. approximately.

DIMENSIONES

  • Peso: 2800 kg.
  • Longitud: 4700
  • Anchura: 2680
  • Altura: 2020
